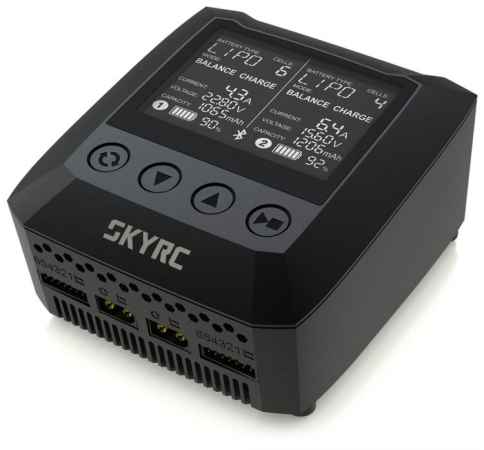

SkyRC Smart B6 Nano Duo Charger

This product is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. It has protection functions such as input high and low voltage protection and reverse input and output reverse polarity protection. The B6 Nano Duo comes out with the aspiration of developing a charger with tiny body but mighty power which makes charing in racing area more convenient and faster. Features: APP Control, Scan to Go, The features APP Control and Scan to Go bring the user a different but pleasant charging experience.

No more scrolling through complex menu, what you see is what you need.

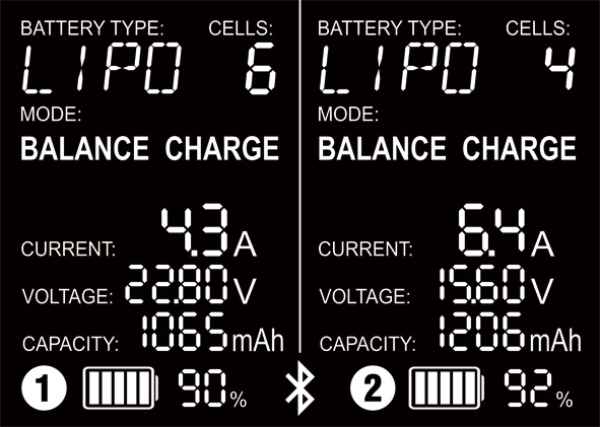

Large black screen, active visual size is 72.4*51.4mm, all information at a glance.

Capacitive Touch Button
B6 nano adpapts touch button, advantages of which are sturdy and durable, quick-responsive and easy operative.Charging is no more rigid.

Dual Output

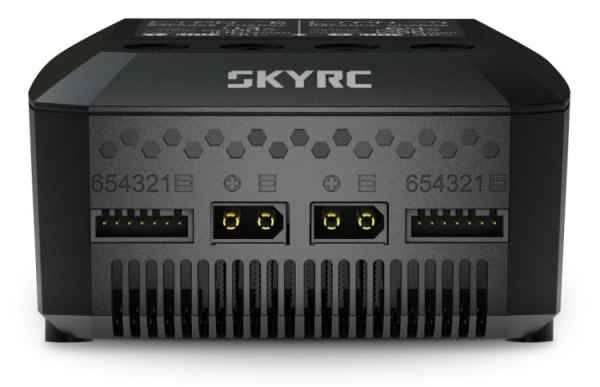

B6 Nano Duo allows you to charge two different battery packs simultaneously withXT60 connectors. If only one channel is working, the power can be up to 200W. If two channels are working, it is 100W per channel.

Powerful and High Speed Micro Controller
ARM® Cortex®-M4F 32 bits high speed processor, data process capability improves 20 times. Using industry leading 2.5V-5.5V wide range input voltage, has strong anti-interference ability.

Smart & Efficient Cooling System
Temperature controlled 16000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.

SCAN TO GO
The innovative Bluetooth Smart technology makes controlling your charger a breeze with your smartphones.


Intuitive Android & iOS application

Upgrading is a breeze
With Over The Air (OTA) update capability we can wireless delivery of new firmware to your charger through mobile phones.


Size and Weight:

• Case Material: Plastic

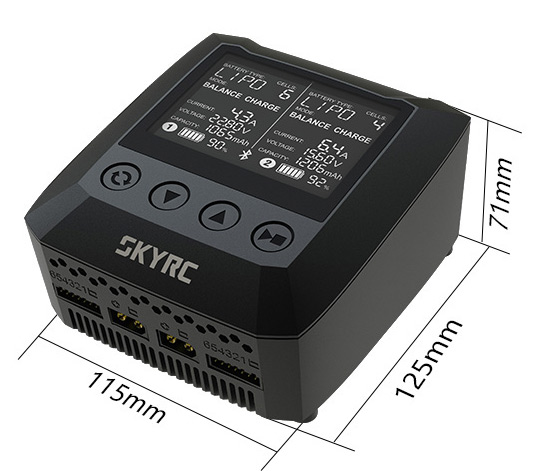

• Case Size: 127 x 115 x 71mm
• Weight: 561g

Display:

• Type: LCD
• Reading Voltage Range: 0.1-26.1V/cell

Buttons And Port:

• External Port: 2-6S Balance Socket-XH, XT60 Battery Sockets & AC Input
• Controls: Four Buttons

Power:

• AC Input Voltage : 100-240V
• Charge Wattage: 200W (2x 100W)
• Discharge Wattage: 8W

BatteryTypes/Cells:

• LiPo/LiIon/LiFe/LiHV: 1-6cells
• NiMH/NiCd: 1-15cells
• Pb: 2-20V

Battery Capacity Range:

• NiMH/NiCd: 100-50000mAh
• LiPo/LiIon/LiFe/LiHV: 100-50000mAh
• Pb: 100-50000mAh

Charge Voltage:

• NiMH/NiCd: Delta peak detection
• LiPo: 4.18-4.25V/cell
• LiFe: 3.58-3.7V/cell
• LiIon: 4.08-4.2V/cell
• LiHV: 4.25-4.35V/cell

Discharge Cut-off Voltage:

• NiMH/NiCd: 0.1-1.1V/cell
• LiPo: 3.0-3.3V/cell
• LiFe: 2.6-2.9V/cell
• Pb: 1.8V
• LiIon: 2.9-3.2V/cell
• LiHV: 3.1-3.4V/cell



• Charge Current: 0.1A-15.0A
• Discharge Current: 0.1A-3.0A
• Balance Cells: 2-6 cells
• Balance Current: 1000mA/cell Max
• Safety Timer: 1-720minutes off
• Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

Working and Storage:

• Operating temperature: 0℃-40℃
• Working humidity: 0%-75%
• Storage temperature: -10℃-70℃
• Storage humidity: 0%-75%
