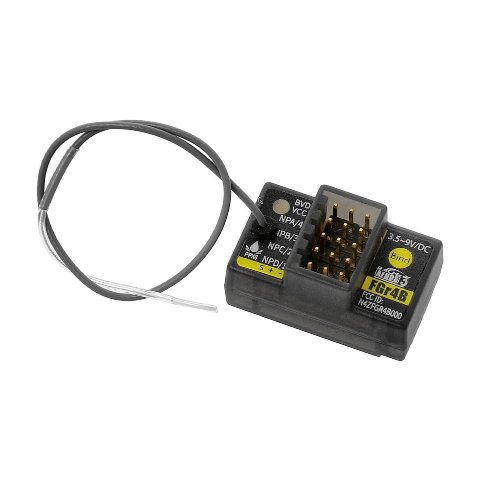

The FGr4B receiver is the ideal support when using a Flysky remote control. The receiver makes use of a technology used by several Flysky transmitters - the automatic frequency hopping digital system (short: AFHDS3). With a bidirectional transmission system via the antenna, this receiver is specially designed for the installation and output of PWM/PPM/i-BUS out/S.BUS signals. All AFHDS3-capable transmitters are supported.
Technical Specifications
| PWM-Channels: |
4 |
| RF: |
2.4GHz |
| Protocol: |
AFHDS 3 |
| Antennas: |
Dual |
| Input Voltage: |
3.5-9V |
| Output: |
PWM/PPM/i-BUS out/S.BUS |
| Temperature: |
-10°C to +60°C |
| Max. Humidity: |
20%-95% |
| Update: |
Yes, online |
| Dimensions: |
17x29x16mm |
| Weight: |
6.4g |
| Suitable for: |
Cars, Boats, etc. |
| Compatible Transmitter: |
all AFHDS3-Transmitter and RF-Modules (PL18, Paladin EV, NB4, NB4 Lite etc.) |
