The FS-i6X transmitter is ideal for controlling all fixed-wing aircraft, gliders and helicopter models. Thanks to the AFHDS2A protocol, the transmitter supports up to 10 channels depending on the upgrade and is compatible with many different simulators via the USB port.
Features:
- AFHDS2A
- Up to 10 channels
- LCD 128x64 Dot Matrix
- Supports PWM and PPM as well as i-BUS and S.BUS
- Compatible with USB Simulator
Technical Specifications:
| Transmitter |
| Type: |
2.4GHz |
| Frequency Protocol: |
AFHDS 2A |
| Channels: |
6-10 (Standard: 6) |
| Suited RC Models: |
Fixed wing, helicopter, glider, boat |
| Distance: |
500 - 1500m (air) |
| Channel Resolution: |
4096 |
| Battery: |
- 4x 1.5V AA |
| Low Voltage Warning: |
< 4.2V |
| Antenna Type: |
Dual |
| Display: |
STN transflective display, LCD 128x64px dot matrix |
| Charging Interface: |
- |
| Data Interface: |
PS / 2 (PPM) |
| Temperature Range: |
-10°C up to +60°C |
| Humidity Range:: |
20% up to 95% |
| Online Update: |
Yes |
| Size: |
174x89x190mm |
| Weight: |
392g |
| Receiver |
FS-IA6B |
| PWM: |
6 |
| Type: |
2.4GHz ISM |
| Frequency Protocol: |
AFHDS 2A |
| Suited Transmitter: |
All radios with AFHDS 2A-support |
| Antenna Type: |
Dual (2x 150mm) |
| Voltage: |
4-8.4V |
| Data Interface: |
PWM/PPM/i-BUS/S.BUS |
| RSSI: |
Ja |
| Temperature Range: |
-10°C up to +60°C |
| Humidity Range: |
20% bis 95% |
| Online Update: |
Yes |
| Size: |
47x26.2x15mm |
| Weight: |
10g |

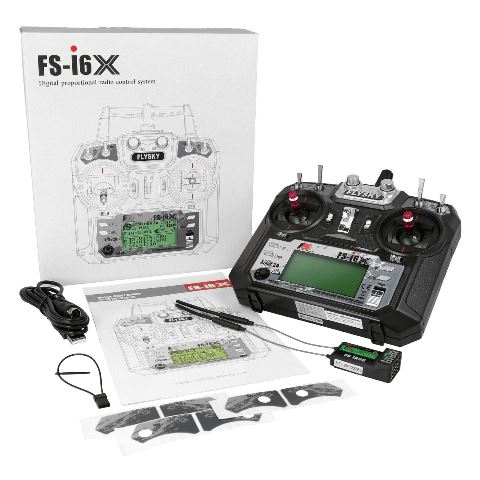

Delivery:
- FlySky i6X Transmitter
- 1x Receiver: FS-IA6B
- Manuals
