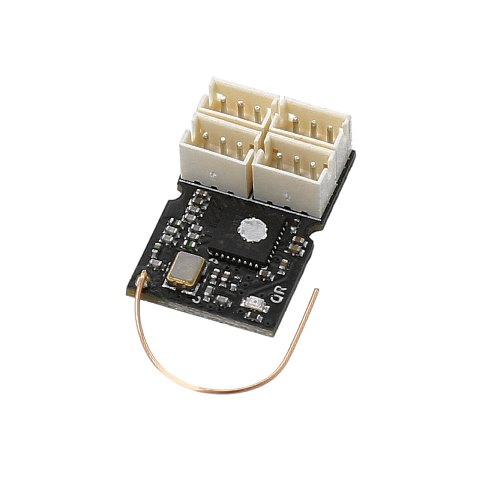

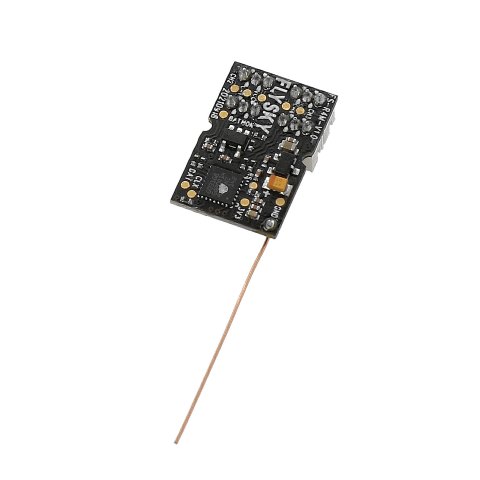

The R4M receiver is the ideal partner when using a Flysky remote control, supports a bidrectional transmission and is specially designed for the installation and output of PWM signals. Therefore it is supported by all ANT-capable transmitters.
Technical Specifications
| PWM-Channels: |
4 |
| RF: |
2.4GHz ISM |
| Protocol: |
ANT |
| Antennas: |
Single |
| Input Voltage: |
3.5-9V |
| Range: |
>50m (Ground) |
| Output: |
PWM |
| Resolution: |
1024 |
| Temperature: |
-10°C to +60°C |
| Max. Humidity: |
20%-95% |
| Update: |
Ja |
| Dimensions: |
20x13x7.2mm |
| Weight: |
3g |
| Compatible Transmitter: |
all ANT-Transmitter |
Flysky
