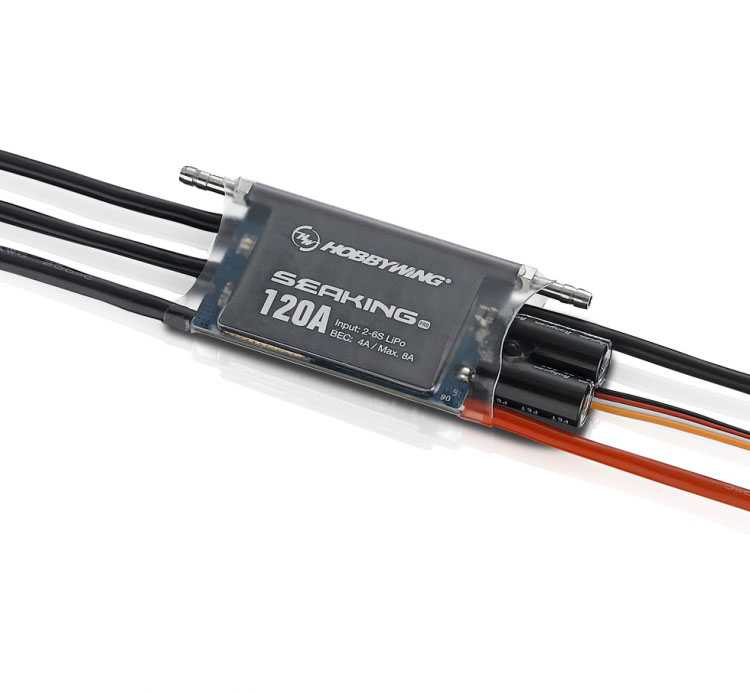

Seaking Pro 120A 2-6S Mono1 Boat ESC

Hobbywing Seaking Pro 120A Marine ESC

Competition Design
The light-weight of the Pro 120A is designed to meet the users’ requirements of a light weight product for all marine competition which weight is a factor of speed and endurance. The core program for top-level competition products guarantees the user first-class control and “abundant” programmable parameter items for different competition environments. (* The ESC is especially applicable to ECO/MONO1)


Splash-proof
The whole circuit board and all the components on it have gone through nano-coating treatment; this makes the Seaking Pro 120A ESC splash-proof.


High Voltage Built-in BEC
The built-in switch mode BEC with a maximum output of 8A and adjustable voltage of 6V/7.4V make the ESC compatible with various high voltage servos.


High Durability & Reliability
Reliable hardware (i.e. MOSFETs with extremely low internal resistance) combined with advanced  software (features low-voltage cutoff protection, thermal protection, throttle signal loss protection, and etc) guarantees the durability and reliability of the ESC and relevant electronic devices.


Innovative Turbo Function
The world’s first marine ESC to have implemented the turbo timing function which will give the user the edge over the competition with instant turbo boost.


Programming/Upgrading Wirelessly
With Hobbywing’s WiFi module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters or upgrade firmware without leaving the control stand.


Efficient Cooling System
The Hobbywing patented heat-conductive copper bar cover on the power board of the ESC combined with the water cooling module efficiently and effectively transfers heat to the outside thus keeping your ESC as cool as possible.




Regular Firmware Updates Free of Charge
You can upgrade the ESC with the Hobbywing WiFi/USB LINK software, a WiFi module/LCD program box and a smartphone /laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.



Specifications

• Brushed/Brushless: BL
• Waterproof: Waterproof (IP55)
• Cont./Peak Current: 120A/760A
• Input Voltage: 2-6S Lipo/6-18 Cell NiMH
• BEC Output: Switch Mode: 6V/7.4V,4A

Wires & Connectors

• Input Wires: 12AWG 200mm
• Output Wires: 12AWG 150mm
• Input Connectors: No
• Output Connectors: 4.0mm Gold Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

• Transmitter: Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• Program Port: Separate Program Wire

Firmware

• Firmware Upgrade: Supported

Size & Weight

• Size: 96.6 x 37.9 x 10.3mm
• I.D./O.D. of the Water Cooling Pipe: Ф2.0/5.5 mm
• Weight: 87.5g

• ECO, Mono1/Other Competition Boats (≤100cm)
