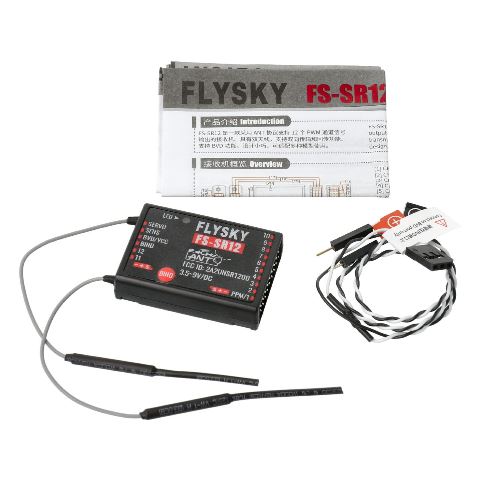

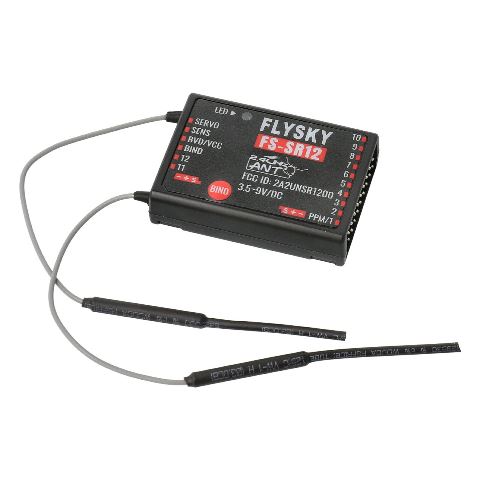

The SR12 receiver is the ideal partner when using a Flysky remote control and is specially designed for the installation and output of PWM signals. Therefore it is supported by all ANT-capable transmitters and is waterproof in terms of the PPX4 regulation.
Technical Specifications
| PWM-Channels: |
12 |
| RF: |
2.4GHz ISM |
| Protocol: |
ANT |
| Antennas: |
Dual |
| Input Voltage: |
3.5-9V |
| Range: |
>1500m (air) |
| Output: |
PWM/PPM/i-BUS/S.BUS |
| Resolution: |
4096 |
| Temperature: |
-10°C to +60°C |
| Max. Humidity: |
20%-95% |
| Update: |
Ja |
| Dimensions: |
44.8x32x11.3mm |
| Weight: |
13g |
| Compatible Transmitter: |
all ANT-Transmitter |
Flysky
